Xojo2024R3.1. Accessing XHeight, Descent, CapHeight, Leading, LineHeight

Targets
1

Hi all,

I am having some trouble implementing these font properties: XHeight, Descent, CapHeight, Leading, LineHeight.

The documentation (Font — Xojo documentation) is silent.

Thank you in advance for your help.

DB

2

It would help if you defined what you mean by “trouble”.

1 Like
3

You can access the properties FontAscent or TextHeight by writing this:

Var myDouble as Double
Var myGraphics as Graphics

myDouble = myGraphics.FontAscent
myDouble = myGraphics.TextHeight

But what do you have to write to access these properties : XHeight, Descent, CapHeight, Leading, LineHeight ?

DB

4

I just ran into the same problem accessing these values.
The document Font — Xojo documentation shows an example that makes it look like getting the Leading should go:

Var helvetica12 As New Font(“Helvetica”, 12) ’ from the docs
myLeading = helvetica12.Leading ’ should be allowed after the above line?

But when compiling, line 1 displays an ERROR saying it found a REALbasic method instead of a type name.

So, how is the leading for a font accessed?

5

The Font class is available for Mobile projects only as documented at the Compatibility section ( Font — Xojo documentation ).

6

I am getting a different reading… Here is what I’m seeing on that page. Should I be referencing a different page?

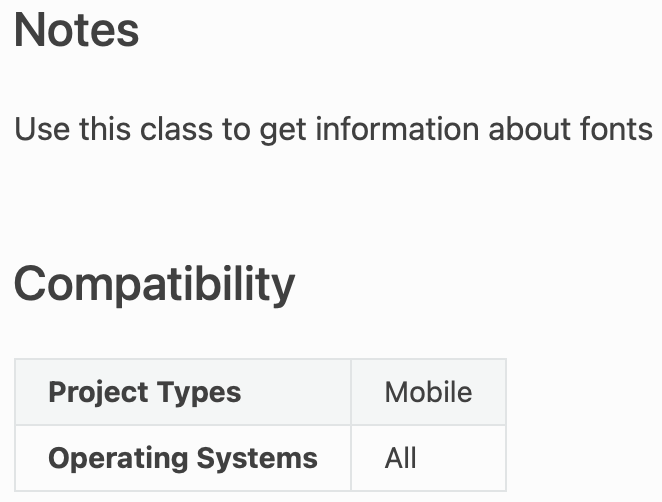

image662×502 20.8 KB

7

Yes, all Mobile, or Mobile only:

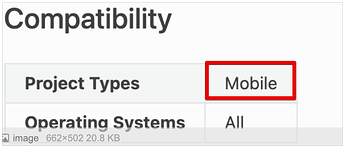

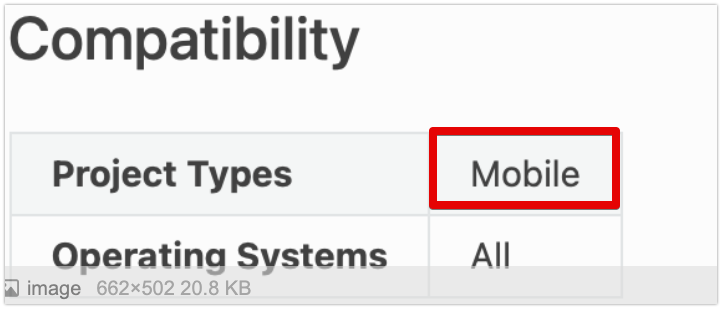

image722×309 30.6 KB

8

If you have MBS and are only targeting macOS you can use FontMBS to get the information you need.

9

OK, I didn’t see it because it was right in front of me.

I was able to use Graphics.TextHeight to get the results I was needing (placing the next line of text).

Thanks for you patience…

1 Like
