Is there a standard way to incorporate C++ helper apps?

I am hoping that there is a well-established way to incorporate a C++ executable into a Xojo desktop app that signs for the App Store. It seems like it boils down to the executable expecting its dylibs in a folder called ‘lib’ where the compiled OS X app puts them in ’Frameworks.’ If so, does a simple edit to the C source and a recompile solve the problem? (I am not unix/C literate so I will have to find someone to advise. Right now I just want to know what I am up against. The program I need is current, well-maintained and has a cmake file at proj.org.)

How have folks handled this situation in the past?

You can add or change the rpath for an existing binary with

install_name_tool

Keep in mind that you’ll need to re-sign the binary.

1 Like

Thank you Greg for the suggestion of install_name_tool. It seems like the right tool for the job. Now I need to find a unix guru to help me with the syntax.

otool -L <binary>
list all dylibs the binary links against, with their recorded paths

install_name_tool -change <old> <new> <binary>
change what a consumer binary looks for

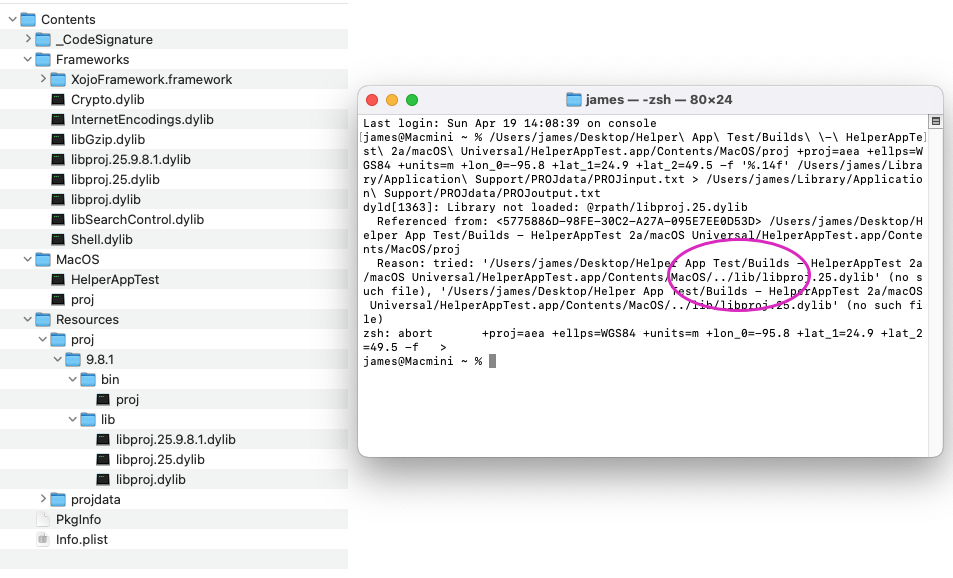

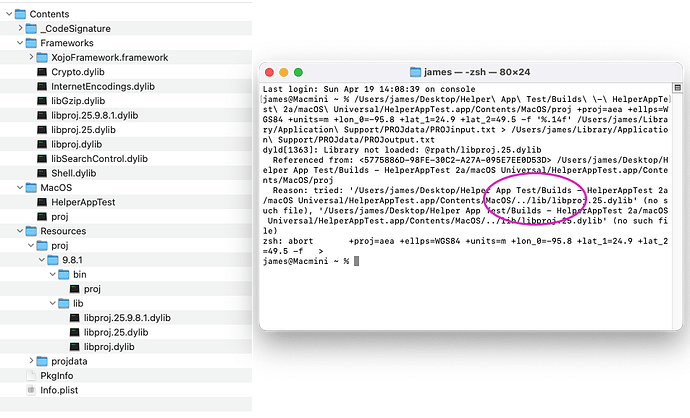

Thank you again. I am stumbling all the way back at the newbie level. the entire path that fails is, for me:

/Users/james/Desktop/Helper App Test/Builds - HelperAppTest 2a/macOS Universal/HelperAppTest.app/Contents/MacOS/../lib/libproj.25.dylib’ (no such file)

I assume that, for , I need to give otool just the tail end of this, maybe “MacOS/../lib/libproj.25.dylib” or “Contents/MacOS/../lib/libproj.25.dylib” perhaps with a tilde? …and the same for , with “Frameworks” in for “lib”.

I gave up programming back in the 60s before c and unix became a thing, then when “RealBasic” came along in the 90s, decided to get back into it. regular contributors to the Xojo forum are almost all bilingual in C and XOJO. But not me.

Thank you for your gentle bedside manner…

James

You should put the binary into the helpers folder inside the bundle and the new rpath needs to be the relative path to the Frameworks folder from your binary.

I think I have it now. otool -L is now giving me:

@rpath/../Frameworks/libproj.25.dylib

where before it gave:

@rpath/libproj.25.dylib

Thank you again for your support.
