Interim suggestions until WebGraphics wrap is fixed

[Ryan_Hartz]

Good morning. I am looking for any suggestions (a hack possibly) for an interim solution until the WebGraphics failing to wrap text is fixed. I posted about this a few weeks ago:

WebGraphics wrap text does not seem to work

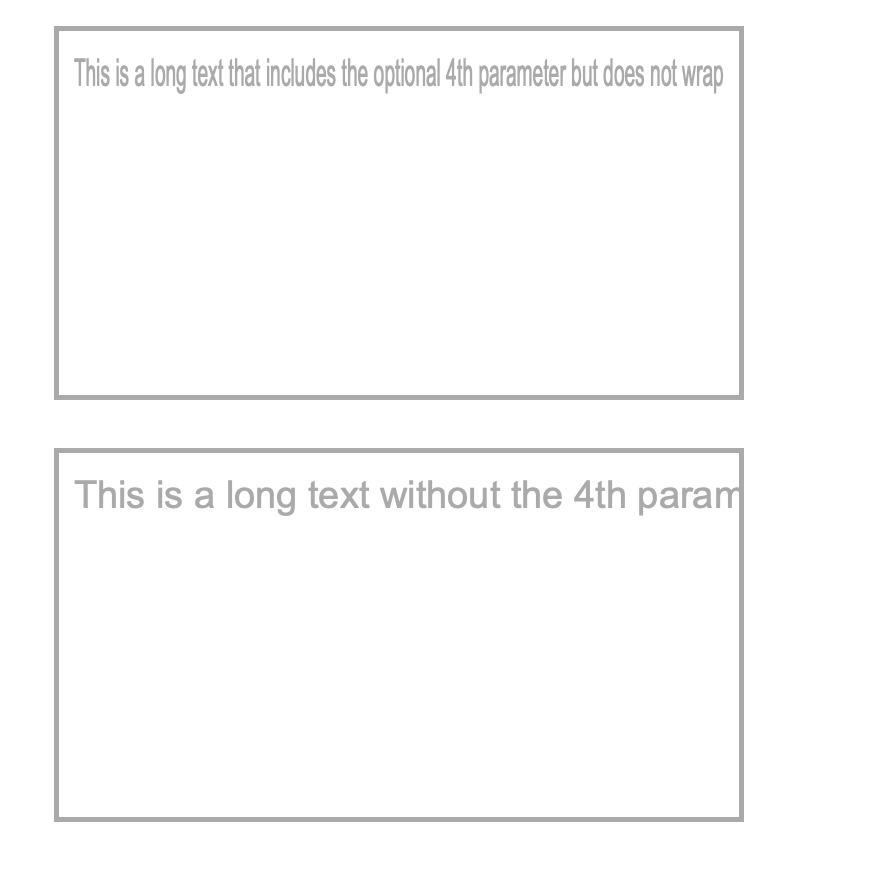

I am wondering if this is a bug. I saw a similar post from 2014 but not sure it was ever reported. LMK if this needs to be reported or if I am missing something. In a long string of text, it looks like the text is scrunching to all fit on one line, where it should wrap to the next. Xojo 2022 R3 [Screen Shot 2023-01-19 at 2.21.34 PM] Code in top canvas g.FontSize = 19 dim longText as String = "This is a long text that includes the optional 4th parameter but does not wrap" g.DrawText(longT…

I have an Issues case open and would appreciate some thumbs up on it to increase importance
https://xojo.com/issue/71471

I am in the process of converting my desktop study guide app into web, and one of the features is a practice exam. In the desktop app, I have canvases for the question and 4 answer choices. The amount of text in each of these can vary, and I have the heights of each canvas changing appropriately to fit the text in each. The top of the next answer choice is based on the height of the previous choice plus a spacer. I first create a picture of these to determine the height, change the height of each canvas, and draw in the text. In desktop, the graphics class wraps the text appropriately, so all is good. The WebGraphics class does not seem to wrap, so I am stuck now

For the time being, I would consider using a label to hold the text, but I am unable to get the height to change accordingly. Is there a way to accomplish this? Do you have any other suggestions? I’d rather not use a TextArea set at a static height and have the user scroll down to read more. Would rather have all the text display and grow accordingly (and wrap of course)

This screenshot below is of the desktop app. As you can see, the second answer choice contains more text, which wraps to the second line, and the 3rd and 4th choices move down accordingly

[Greg_O]

If you use a font like Helvetica or Arial, you can do a best-guess estimation of where the break points would be and do the wrapping yourself. Just break the line into words and then use a loop to add words until the line is too long to fit on the line. Once it is, record that as a line (or draw it) and continue with the next line of text.

[Ryan_Hartz]

Thanks for the tip Greg. I’ll see what I can do. Hope the WebGraphics bug gets fixed soon too
