How to change background color on selectedSegment of MobileSegmentedButton

[Sharon_Dankwardt]

I’m using iosDesignExtensions and can’t seem to figure out what to put in my opening event for it. I tried using SetSelectedColor but it doesn’t seem to be doing anything. Any ideas?

[Jeremie_L]

It seems SetSelectedColorXC will only work after setting SetNormalColorXC:

me.SetNormalColorXC(color.Clear)
me.SetSelectedColorXC(&cA0A0FF)

[Sharon_Dankwardt]

Thanks so much, I knew there had to be something I was missing! I don’t see anything for SetSelectedTextColor, Is there a trick for that?

[Jeremie_L]

I think there is but it requires adding iOSKit to your project.

I will update the project on github in the coming days so it doesn’t require iOSkit anymore.

[Jeremie_L]

In SegmentedControlExtensionsXC.SetTextColorXC, erase all code and paste this:

Declare Function dlopen Lib “/usr/lib/libSystem.dylib” (path As CString, mode As Integer) As Ptr
Declare Function dlsym Lib “/usr/lib/libSystem.dylib” ( handle As Ptr, name As CString ) As ptr

Dim uikitHandle As Ptr = dlopen(“/System/Library/Frameworks/UIKit.framework/UIKit”, 2)
Dim symAddr As Ptr = dlsym(uikitHandle, “NSForegroundColorAttributeName”)
Dim keyStr As ptr = symAddr.Ptr(0)

Declare Function NSClassFromString Lib “Foundation” (aClassName As CFStringRef) As Ptr

Declare Function dictionaryWithObjectForKey Lib “Foundation” selector “dictionaryWithObject:forKey:” _
(clsRef As ptr, obj As ptr, key As ptr) As ptr

Dim nsDic As ptr = dictionaryWithObjectForKey(NSClassFromString(“NSDictionary”), New UIColor(c), keyStr)

Declare Sub setTitleTextAttributes Lib “UIKit” selector “setTitleTextAttributes:forState:” _
(obj_id As ptr, att As ptr, state As UIControlState)

setTitleTextAttributes(seg.Handle, nsDic, state)

You will then be able to set the Textcolor like this in the Opening event:

me.SetTextColorXC(&c0000FF, SegmentedControlExtensionsXC.UIControlState.Normal)

me.SetTextColorXC(&cFF0000, SegmentedControlExtensionsXC.UIControlState.Selected)

[Sharon_Dankwardt]

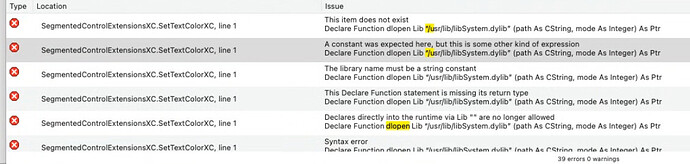

I’m getting all sorts of errors when I do this. Here are the first few

[Arnaud_N]

Your screenshot suggests the first issue is about quotes, so I’d first try replacing them with real quotes ("). This forum is known to mess them easily.

[Jeremie_L]

Sorry about that, the forum messed up the quotes.

Declare Function dlopen Lib "/usr/lib/libSystem.dylib" (path As CString, mode As Integer) As Ptr
Declare Function dlsym Lib "/usr/lib/libSystem.dylib" ( handle As Ptr, name As CString ) As ptr

Dim uikitHandle As Ptr = dlopen("/System/Library/Frameworks/UIKit.framework/UIKit", 2)
Dim symAddr As Ptr = dlsym(uikitHandle, "NSForegroundColorAttributeName")
Dim keyStr As ptr = symAddr.Ptr(0)

Declare Function NSClassFromString Lib "Foundation" (aClassName As CFStringRef) As Ptr

Declare Function dictionaryWithObjectForKey Lib "Foundation" selector "dictionaryWithObject:forKey:" _
(clsRef As ptr, obj As ptr, key As ptr) As ptr

Dim nsDic As ptr = dictionaryWithObjectForKey(NSClassFromString("NSDictionary"), New UIColor(c), keyStr)

Declare Sub setTitleTextAttributes Lib "UIKit" selector "setTitleTextAttributes:forState:" _
(obj_id As ptr, att As ptr, state As UIControlState)

setTitleTextAttributes(seg.Handle, nsDic, state)

[Sharon_Dankwardt]

awesome, works great now
