Cell Background color listbox

General
1

Okay I have read the documents and I even copied the code from the example and I still am getting an out of bounds error.

// Original code I came up with... throws out of bounds exception...
'If ( column = 1 ) Then // Quantity Value...
'If ( Me.CellTextAt( row, column ).ToInt64 <= 0 ) Then
'g.DrawingColor = Color.RGB( 255, 69, 0 ) // Orange Red...
'Else
'g.DrawingColor = Color.RGB( 0, 153, 51 ) // North Texs Green...
'End If
'End If

// Error appears first line of code it's an out of bounds acceptation...
If Me.CellTagAt( row, column ) = "0" Then
  g.DrawingColor = Color.Red'RGB(255, 0, 0)
  g.FillRectangle(0, 0, g.Width, g.Height)
Else
  g.DrawingColor = Color.Green'RGB(255, 0, 0)
  g.FillRectangle(0, 0, g.Width, g.Height)
End If

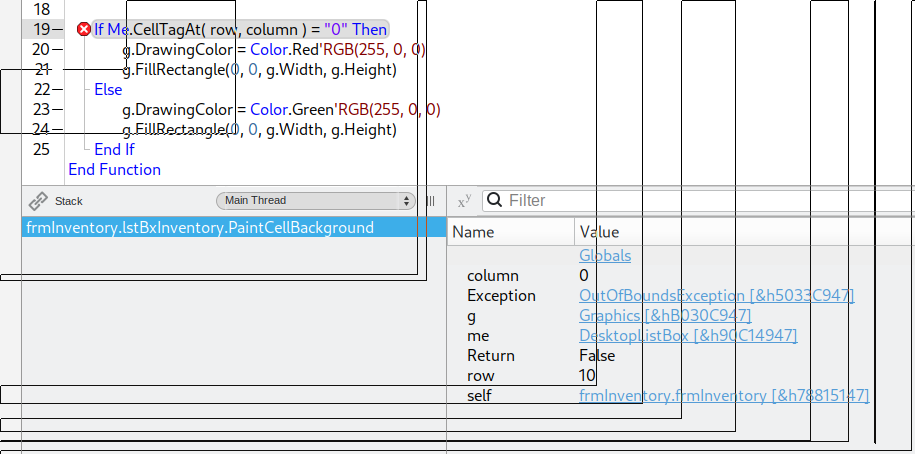

LstBx Color Error
LstBx Color Error915×454 55.8 KB

2

You need to check if you actually have a CellTag at row and column.

3

In your screenshot row=10. If there are fewer than 11 rows in the list then trying to access the 11th row’s cell tags will raise an OutOfBoundsException.

Try adding a check that compares the row to the LastAddedRowIndex property, and only access the cell tags of rows that have actually been added:

If row <= Me.LastAddedRowIndex Then
  If Me.CellTagAt( row, column ) = "0" Then
2 Likes
4

The example mentioned likely doesn’t check for that; probably time to update it…

5

if row <= me.lastrowindex then
If Me.CellTagAt( row, column ) = "0" Then
  g.DrawingColor = Color.Red'RGB(255, 0, 0)
  g.FillRectangle(0, 0, g.Width, g.Height)
Else
  g.DrawingColor = Color.Green'RGB(255, 0, 0)
  g.FillRectangle(0, 0, g.Width, g.Height)
End If
end if
2 Likes
6

Jeff and Andrew, thanks that worked. But it paints the entire column. I’m looking to just paint a cell that meets the criteria. Is this possible? Column 1 cells where the inventory value is located.

7

PaintCellBackground is raised for every cell in view. If you only want to paint a certain cell you need to check that before getting down to the sample Jeff posted.

Something like this:

// No OOBE, thanks
if row > me.LastRowIndex then return false

// Only painting in column 1, the inventory value
if column <> 1 then return false

// wut is this data type clobbering?
// we sure it's not supposed to be an integer or boolean?
if me.CellTagAt(row, column) = "0" then
  g.DrawingColor = Color.Red

else
  g.DrawingColor = Color.Green

end

// Got our color, we're in the right column, paint the color
g.FillRectangle(0, 0, g.Width, g.Height)
2 Likes
8

Thanks Tim, I’ll give this a try and see what happens! Perfect! Thanks again! I am curious though in the two preceding If statements they are to return false, where is that return going and how does it work?

9

It says ‘I didnt do any painting, so I’m letting the normal stuff happen’
Return true means ‘I did all that was needed, please dont draw on top of my stuff’

2 Likes
