Try the base codepoint without the color attribute :
︎
Hmm. I guess there’s no one.
Emoji are displayed as black and white only on DesktopRadioButton.Caption and DesktopSegmentedButton
Thank you but I don’t understand “Base codepoint”.
This emoji has 2 codepoints, one for the symbol (hand with pencil) and one for a color attribute (skin color). The base codepoint is &u270f as
Var hand As String = &u270f
But I see it rendered as a yellow one and not B&W in Windows. So it wasn’t working.
I may have fixed it, see this:
var handWithPen As String = &u270d+&ufe0f
Button1.Caption = x
My button rendered as:
1 Like
Now there’s another mess. I’ve tried a dark skin variation as
var x As String = &u270d+&u1f3fe
Button1.Caption = x
And the result was the same:
So Xojo is not rendering it as expected.
hank you for your test Rick, if I do:
MySegmentedButton.SegmentAt(0).Caption = &u270d
it is an emoji, not a black&white as I want.
I see. And to get things worse this control does not have a paint event to create drawing workarounds using pictures.
If the character is in Segoe UI Symbol AND in Segoe UI Emoji , then the Emoji one is used.
I have then to use symbol characters which are not in Emojis.

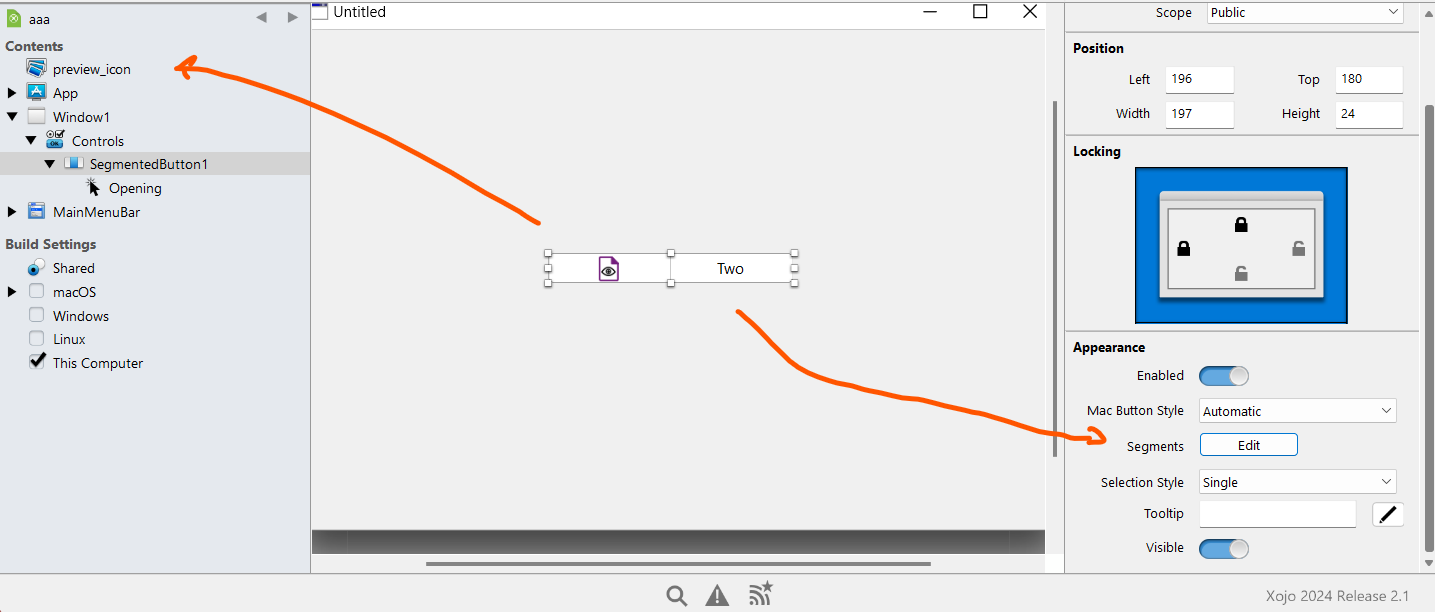

I can’t see where to set a font in a segmented button. But I’ve found a static graphics workaround.

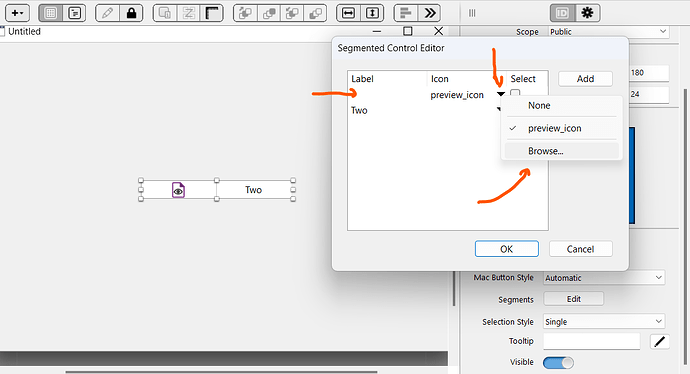

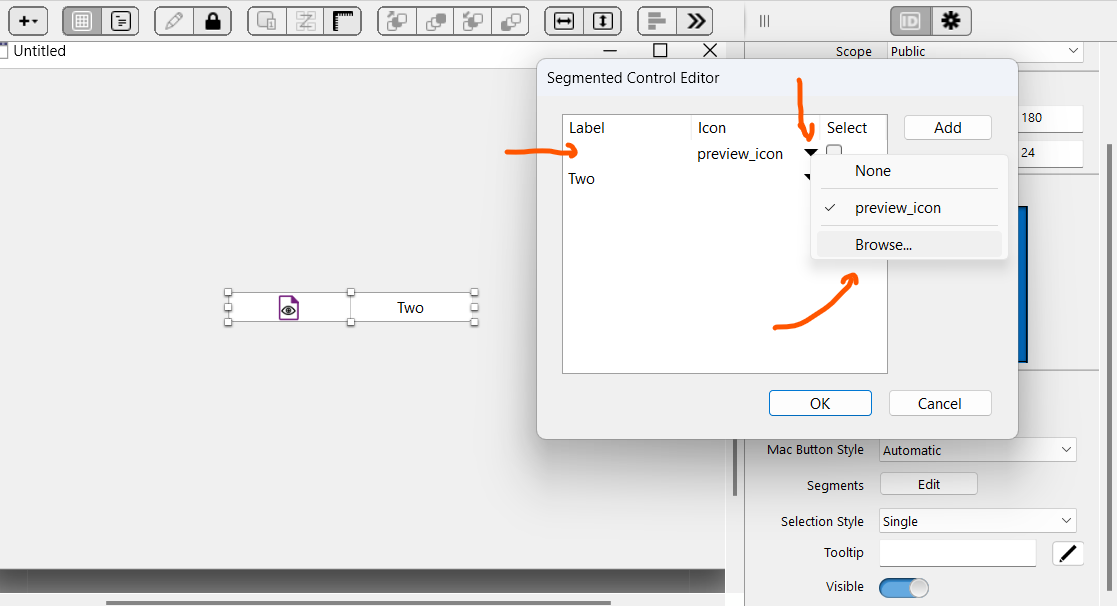

Edit the segments, clear the label, load a png icon.
Later you can change the icon by any 16x16 Picture object like
Me.SegmentAt(1).Icon = any_available_icon

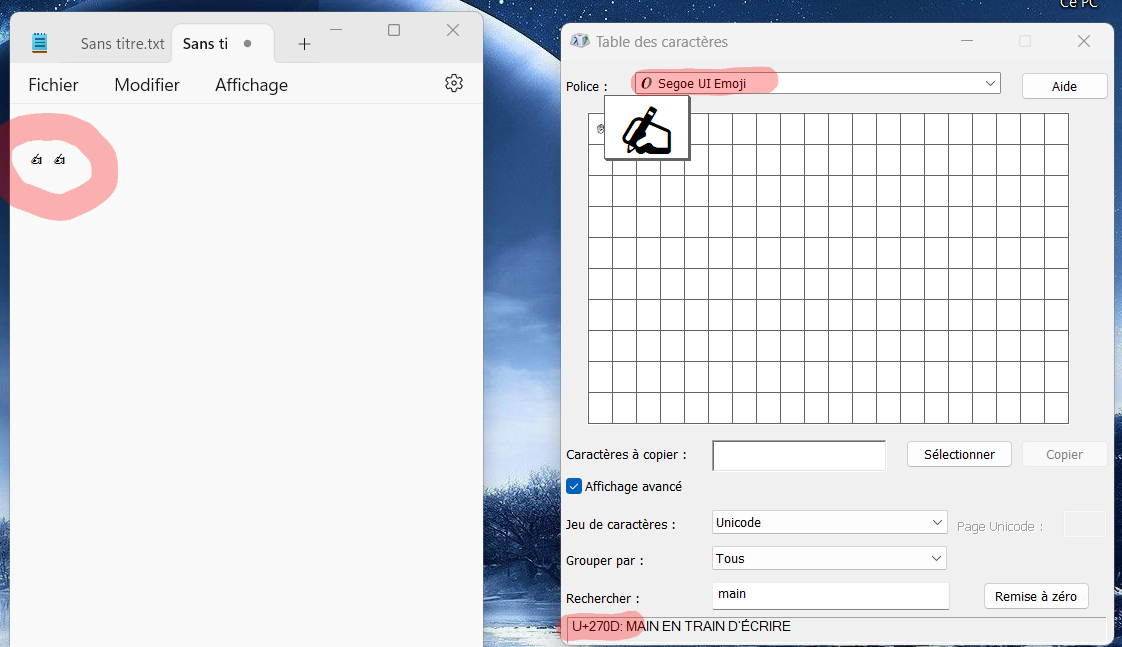

I’m not sure if it’s Xojo’s fault. Below 2 screencaptures under Windows, one with SegoeSymbol and the second with SegoeEmoji. The code for “Hand been writing” is the same: U+270D and they are displayed as identical under the application Bloc-notes.exe .

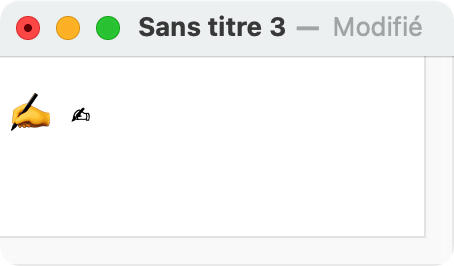

and this one under TextEdit.app (Mac OS):
Then, maybe Xojo should add a property to the control which would be only available under Windows: “Use Emoji (if exist) instead of Blanck&White Symbol”
Probably if you could set the font and size of chars of the label of a segment you could handle it if you find a font that renders it B&W. So it may be a Xojo “feature” no being able to choose the B&W charset variant, if one exist.
Here is a workaround that could solve your problem. You can implement this solution by creating a Method or just placing the following code under a pushbutton. This should provide a quick and efficient solution to the issue you are experiencing.
var WritingHandString as string = &U270d
var b as integer = 100
dim image as Picture = New picture(b1.5,b1.5)
dim g as Graphics = image.Graphics
image.Graphics.FontSize = b
image.Graphics.FontName =“Segoe UI Symbol”
image.Graphics.drawingcolor = color.Black
image.Graphics.Drawstring(WritingHandString, 0,b)
SegmentedButton1.SegmentAt(0).Icon = image
SegmentedButton1.Refresh
'canvas1.Backdrop = image
'canvas1.Refresh
I have recently come across some information that may be helpful.
