Attempting to center a line on a PDF not working properly

You should open an Issues case.
Create a sample project and add the font.
It is strange that g.textwidth(string) results in 0 for that font.
Javier may have an idea.

This is getting weirder by the minute. Uploaded to server.

I’m positive that I have not installed Zapfino font. But it not only gets rendered correctly but the width is also calculated correctly

There seems to be a problen with how Xojo is calculating the Text Width for Bold text. This is running locally on a Mac where I know for a fact that the Helvetica Font is installed.

This code ( Note Bold = False )

g.FontSize = 14
g.Bold = False
g.DrawText( PrescriptionBody , kMargin , 280 , g.Width - (kMargin * 2) )

Produces this correct output

Setting Bold to True makes the text wrap incorrectly:

g.FontSize = 14
g.Bold = True
g.DrawText( PrescriptionBody , kMargin , 280 , g.Width - (kMargin * 2) )

Result: (Note how it extends outside the width of the graphics object )

What OS are you using?

I tried to duplicate your problem but I get good results on my Mac with Catalina:

The only difference between the first text and the second is bold = False/True. I think that is how it should work.

Can you share a sample project just to run on my computer and I will let you know if it behaves differently than yours?

Edit: another test on the same PDF

Thanks for taking the time to investigate this.

I’m running BigSur 11.6.4

I’ll prepare a test project for you to test. Much appreciated.

Are you setting the .FontName explicitly?

Here is a test project:

https://www.dropbox.com/s/aooh6ua79ibob76/PdfTestProject.xojo_binary_project?dl=0

I’m opening an Issues case with some information, feel free to add if I missed something.
It looks like PDFDocument for Xojo Web has some sizing problems.
I copied the Xojo Example for PDFAnnotations Demo (see image above) and just pasted it into a Xojo Web project and here is the PDF that I get:

See the difference between the bold text and the line under PDFAnnotations Demo with the image in the previous post.

Edit: Case #68914

2 Likes

That seems to be the case.

Thanks for you help @AlbertoD

I may be wrong, but why don’t you pass the correct font using the correct Postscript name ?
(I meant “Helvetica-Bold” instead of g.Bold = True).

I recall reading the styles does not works anymore/people have to use the installed Font Name (the Postscript Name).

For macOS, check the Apple documentation abput fonts, there are Declare for that.

Good idea but I don’t have experience with PDFDocument, I changed my code to this:

g.FontSize = 14
g.Bold = False
g.FontName = "Helvetica"
g.DrawText(tBD, 30, 80, g.Width - 60)
'g.Bold = True
g.FontName = "Helvetica Bold"
g.DrawText(tBD, 30, 180, g.Width - 60)

so I expected the first paragraph to be “Helvetica” and the second to be “Helvetica Bold”

This is what I get on Desktop:

This is what I get on Web:

Looks like a different bug. I will add the notes to the case and let @Javier_Menendez decide if one fix will fix the other too.

Is not the Postscript name of the Font; more likely, this may be “Helvetica-Bold”. (that was its name 30-40 years ago, but today ?)
In Monterey, Helvetica is installed (and I notices some occurences of the word “Zapf”).
Beware: user centered applications will show you the word Bold using the current language (Gras for French). It never shows you the development name (of course).
So, you can fill a PopupMenu with
Helvetica
Helvetica-Bold
Helvetica-BoldOblique
etc.
and try these as FontName (instead of multiple runs in the IDE).

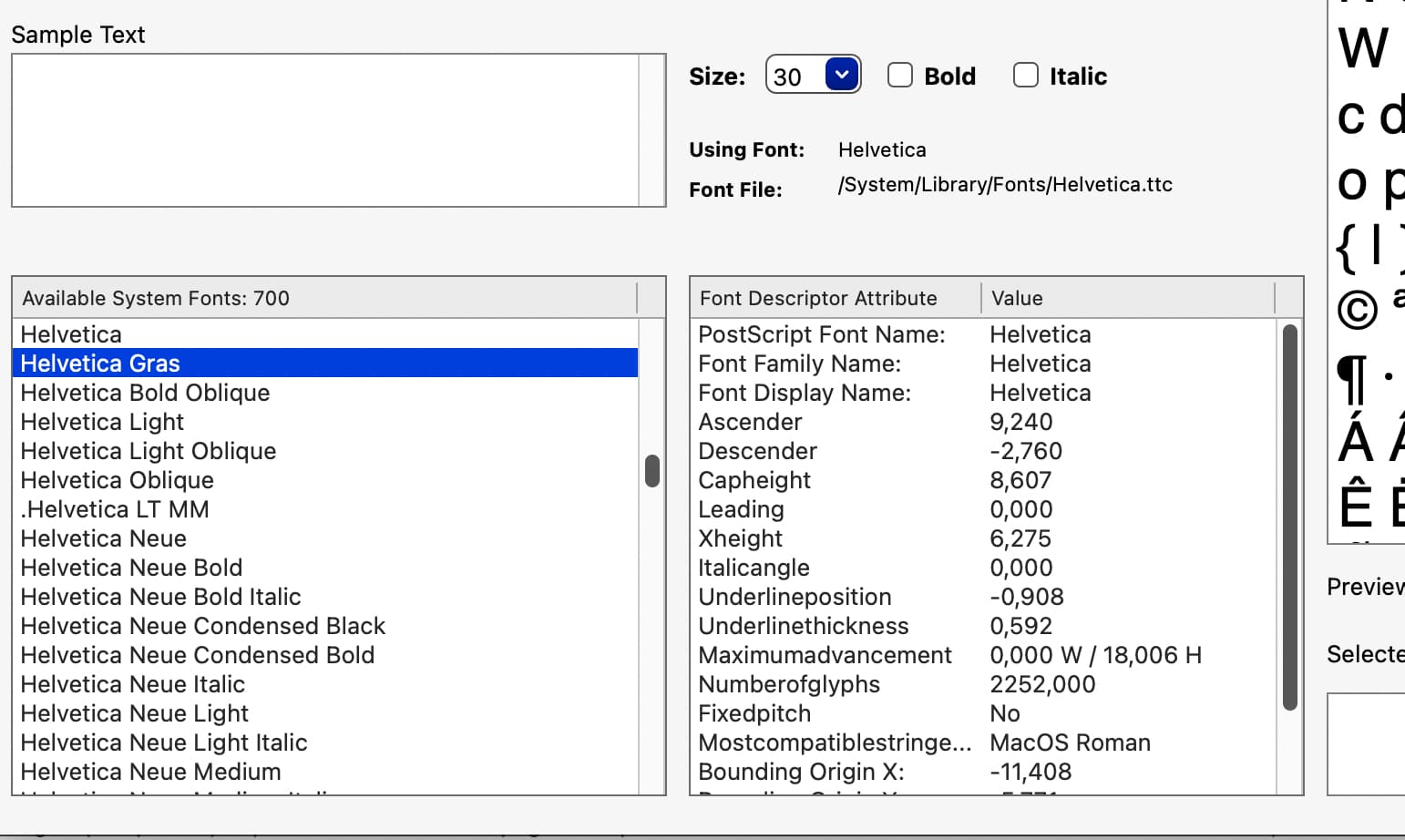

Loading a Font file (like Helvetica.ttc) as text will allow you to get informations about that Font (Names and © are included in the file).

In the Xojo documentation, you will found a list of embeded fonts included some with the Bold style.
https://documentation.xojo.com/api/pdf/pdfdocument.html

Search for StandardFontNames…

The Apple relevant documentation is here:
https://developer.apple.com/documentation/coretext/

You will get the Declare to ask for a Font Name, ID, Load a Font, etc…

Emile, thank you for your ideas, but look at the tests I made. You can download the test code from the Issues case if you want to test.

I expect Xojo Desktop and Xojo Web to produce the same PDFDocument with the same code and this is not the case.

Is up to @Javier_Menendez now to see my bug report and make Xojo Web behave the same as Xojo Desktop in both cases (Bold = True and FontName = “Helvetica Bold”)

Edit: I don’t work with Mobile, can’t test this with other targets. If someone can/wants to test for other targets that support PDFDocument you can add your comments here or on Issues. Thank you.

Edit2: I know that Bold/FontName problem with Web has nothing to do with the title of this thread and that may confuse someone. Just go to case #68914 to see the notes/examples/screenshots for these problems.

1 Like

Hi Alberto,

Wrong Reference Name.

In the mean time, I searched for an example and found one with Xojo… and this crashed when I clicked in the Bold CheckBox.
Example: macOSSystemFonts.xojo_binary_project

The exposed FontNames are user names… and mixed languages… look below:

Thank you Emile, I changed the test code posted on that case to use

  • Helvetica
  • Helvetica-Bold

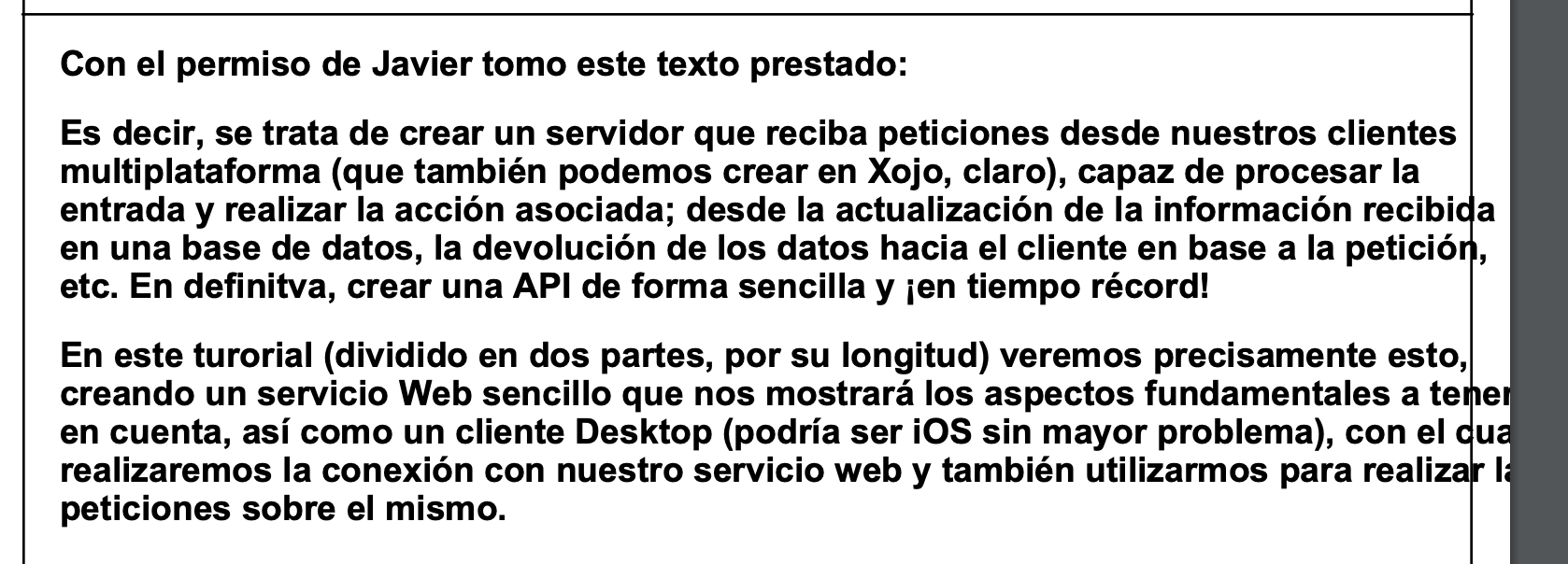

Xojo Desktop creates this PDF:

Xojo Web creates this PDF:

PDFDocument should create the same PDF on both (all) Xojo targets.

Anything else that you want me to test?

Testing

  • HelveticaNeue
  • HelveticaNeue-Bold

Xojo Desktop creates this PDF:

Xojo Web creates this PDF:

Note: this is running locally on my Mac with Catalina

Different fonts have different results with Xojo Web.

1 Like

Same results here

Further testing.

Trying to make sense of this I re-read the documentation and decided to name the fonts using the enumerations as follows:

g.FontName = PDFDocument.StandardFontNames.LiberationSansBold
g.FontSize = 10
g.Bold = False
currentFont = "Curent Font: " + g.FontName + " | Font Size: " + g.FontSize.ToString
g.DrawText( currentFont , 30 , 700 , g.Width - 60 )
Var LineZero As String = "Testing what gets rendered with this Font"
LineZero =  Str(g.textwidth(LineZero)) + "Px - " + LineZero
g.DrawText( LineZero , (g.Width / 2) - (g.TextWidth(LineZero) / 2) , 710 ) // This line is not centering correctly

g.FontName = PDFDocument.StandardFontNames.LiberationSans
g.FontSize = 8
g.Bold = False
currentFont = "Curent Font: " + g.FontName + " | Font Size: " + g.FontSize.ToString
g.DrawText( currentFont , 30 , 720 , g.Width - 60 )
Var lineOne As String = "This is the text for line 1. Some filler content for testing purposes"
lineone = Str(g.textwidth(lineone)) + "Px - " + lineOne
g.DrawText( lineOne , (g.Width / 2) - (g.TextWidth(lineOne) / 2) , 730 ) // This line is not centering correctly

g.FontName = PDFDocument.StandardFontNames.LiberationSansBold
g.FontSize = 8
g.Bold = True
currentFont = "Curent Font: " + g.FontName + " | Font Size: " + g.FontSize.ToString
g.DrawText( currentFont , 30 , 740 , g.Width - 60 )
Var lineTwo As String = "This is the text for line 2 "
lineTwo = Str(g.TextWidth(lineTwo)) + "Px - " + lineTwo
g.DrawText( lineTwo , (g.Width / 2) - (g.TextWidth(lineTwo) / 2) , 750 )

g.FontName = PDFDocument.StandardFontNames.LiberationMono
g.FontSize = 10
g.Bold = False
currentFont = "Curent Font: " + g.FontName + " | Font Size: " + g.FontSize.ToString
g.DrawText( currentFont , 30 , 760 , g.Width - 60 )
Var lineThree As String = "This is line Three"
lineThree = Str(g.TextWidth(lineThree)) + "Px - " + lineThree
g.DrawText( lineThree , (g.Width / 2) - (g.TextWidth(lineThree) / 2) , 770 )

Liberation Font IS installed in the system and is part of the enumerations, however the when the PDF gets created/rendered it ignores the font name and uses a different one

Same code running on the server:

At least the font name is being honored (kinda)
