WebTextField.SoManyPropertiesAndEvents not working

Targets Web
1

I’m trying to highlight fields that need a users attention (maybe they put some bad data or are missing data).

I set out to use WebTextField.Indicator but the fields don’t seem to react to changes to that property. So then I tried simply changing the style of the background to something like this…

txt_password_login.Style.BackgroundColor = Color.FromString("&hFFFF00")

…that works great. However, I wanted to use the .GotFocus event of the field to restore the .BackgroundColor… but, that event doesn’t seem to fire.

I can manage to get the .TextChanged event to react, so I thought I’ll just use that to reset the background, which appears to work, but then after testing I see that as a user types into that field that an occasional backspacing happens and arbitrarily backspaces over one of the entered characters!

Is this known behavioral issues with WebTextField’s?

2

There is a bug that the GotFocus doesn’t fire if you click a WebTextField (TABbing in/out works). The bug is marked fixed so next Xojo release should have that fixed.

Haven’t seen that reported, can you create a sample application and/or video about this?

3

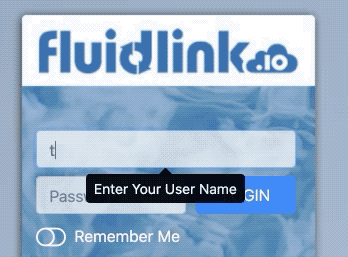

Here is the login window I’m working on now and it exhibits the issues. If you 'submit bad credentials the fields turn yellow - if you try backspacing over your bad password and start retyping it you’ll see how the input gets hijacked and backspaces over your ongoing entry.

4

I have one line in the .TextChanged event:

Me.Style.BackgroundColor = Color.FromString("&hFFFFFF")

…if I remove that line then the weird backspacing goes away too.

5

I guess that code is making round trips to the server and creating problems when you are typing, executing more times than expected.

I remember a bug report about TextChanged timing but I can’t find it.

From the docs:
https://documentation.xojo.com/api/user_interface/web/webtextcontrol.html#webtextcontrol-textChanged

The event fires only when the user has stopped typing for a short period.

For me, it looks like the TextChanged may be firing even if the user still writing.
typing

I’m trying to type “thisisatest” but I can’t.

Edit: testing locally this helps by not trying to change the BackgroundColor if it is already white:

If Me.Style.BackgroundColor <> Color.White Then
  Me.Style.BackgroundColor = Color.White
End If

TextChanged event is firing more times than I expected.

6

When rendering, some Xojo Web controls will set their properties whether they need it or not. I haven’t investigated this particular scenario, but this is the kind of thing I expect when the following is happening:

  1. User is typing
  2. Changed event fires
  3. BackgroundColor is set
  4. User is still typing…
  5. Control is re-rendered client-side, overwriting the current field value
  6. User is still typing…

If that’s the case, there will be lost information. As I said, haven’t checked this specifically but from what I’ve seen of the framework this seems likely. I wouldn’t change the BackgroundColor or, really, any other property from TextChanged.

1 Like
7

Thanks for all your assistance vetting this! I’m going to leave a reminder in the TextChanged event that says “don’t use!”.

I’d really like to find a simple solution to showing a user what field(s) aren’t good - and then removing the error as they ‘fix’ their work.

Since none of the Focus events work (in a way conducive to users inputting data) then I think I’ll just have to find some sort of work-around :frowning:

8

Well, you could do something like this in TextChanged:

if me.Text.Length > 0 then
  ExecuteJavaScript( "$('#" + me.ControlID + "_field').addClass('is-valid').removeClass('is-invalid');" )
else
  ExecuteJavaScript( "$('#" + me.ControlID + "_field').addClass('is-invalid').removeClass('is-valid');" )
end if

This wouldn’t trigger the re-render and would give validation information directly in the component using the built-in Bootstrap classes. I’d probably create a subclass of WebTextField and store state so that you only update it when needed.

An alternative would be to grab GraffitiSuite. I have a ton of extra functions, properties, and abilities built in to my components for things like this.

9

…it sure would make it more simple if the actual (documented) behavior of the controls worked :wink: I appreciate the scripting suggestions - look forward to getting onto the next task - I always get stuck going down the rabbit hole on these things.

I’m going to check out GraffitiSuite - if it solves problems and doesn’t have a large learning curve then Yes Please!

10

You could also do something like this, if you’re into JavaScript, using the TextField’s Shown event. This will work as-is if your control’s Shown event only fires once, but if it’s hidden and shown multiple times then it could bog things down a bit as you’ll be firing the event multiple times on each input.

Sub Shown() Handles Shown
  var exec() as String
  exec.Add( "var $this = $('#" + me.ControlID + "_field');" )
  exec.Add( "$this.on('input', function (e) {" )
  exec.Add( "  if (this.value.length == 0) {" )
  exec.Add( "    $(this).addClass('is-invalid').removeClass('is-valid');" )
  exec.Add( "  } else {" )
  exec.Add( "    $(this).addClass('is-valid').removeClass('is-invalid');" )
  exec.Add( "  }" )
  exec.Add( "});" )
  ExecuteJavaScript( String.FromArray( exec, "" ) )
End Sub

This has the added benefit of not relying on two-way communication to validate the field contents.

11

There’s always a learning curve with anything you do, but I do offer excellent support…not to pat myself on the back too hard.

1 Like
12

I can vouch to the quick support from Anthony.
Between Graffitisuite and @Tim_Parnell 's TP_Webkit (which fixes some of the missing functionality of the webtextfield like gotfocus and lostfocus among others) web 2.0 has been a lot more manageable.

3 Likes
